    4KM 8KM X Band Air Surveillance Radar Airport Ground Asr Radar For Drone Defense Detection

    Ask Lasest Price
    Brand Name : YAOFENG
    Model Number : YFR-02D
    Certification : CE, ISO, FCC, RoHS
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 10sets per month
    Delivery Time : 1month
    • Product Details
    • Company Profile

    4KM 8KM X Band Air Surveillance Radar Airport Ground Asr Radar For Drone Defense Detection

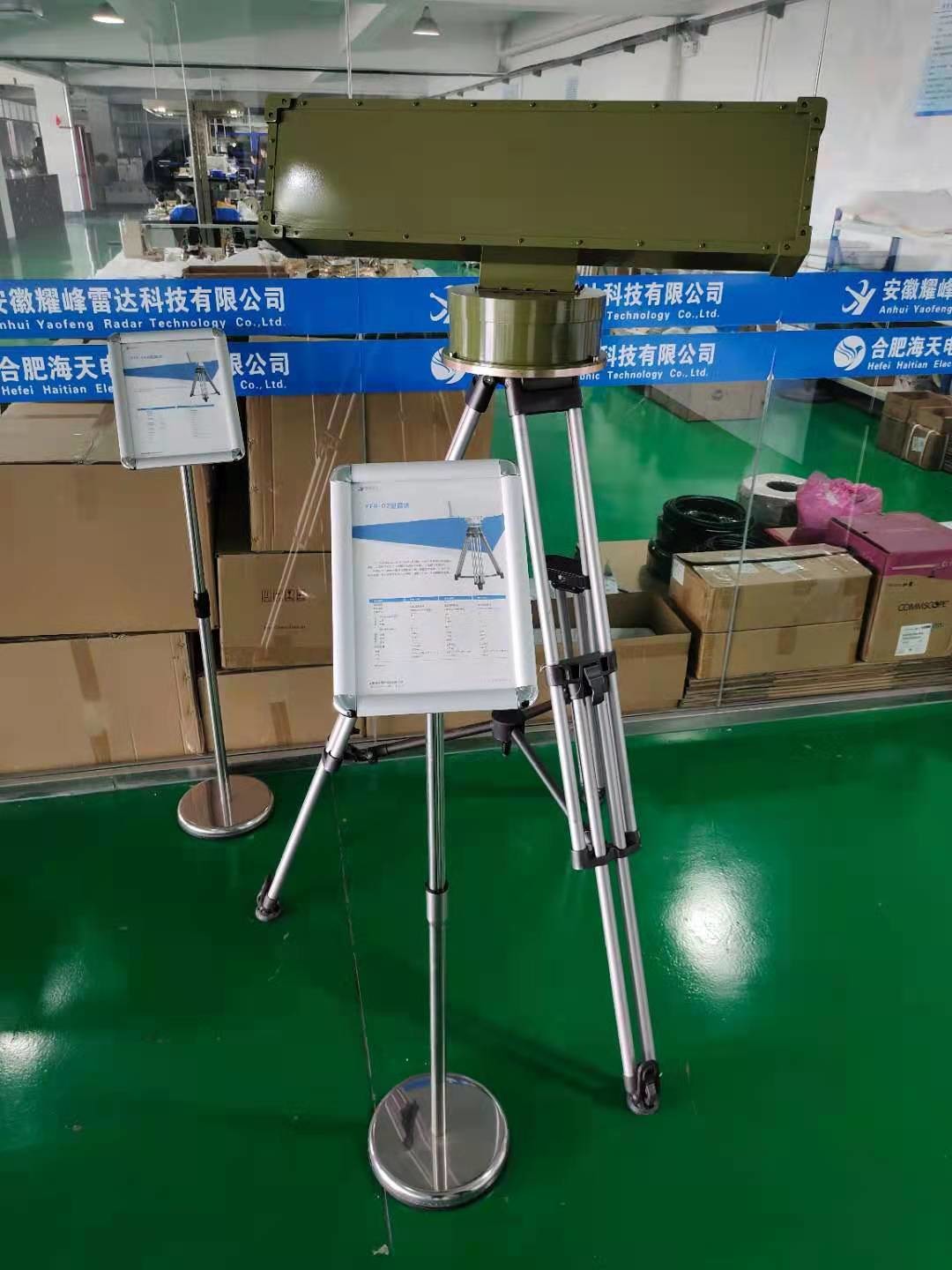

    radar YFR-02D Air Surveillance Radar for Drone Defense and Detection


    l Auto detection and tracking sea-surface or air targets
    l Auto switch to multi-sensors tracking under electronic jamming
    l Precisely 3D tracking data
    l Mounted on any sea or ground platform for medium and short range air-defense

    Technical targetYFR-02AYFR-02BYFR-02C
    Radar wave bandXXX

    Technical system

    Linear Frequency Modulated PulseLinear Frequency Modulated PulseLinear Frequency Modulated Pulse
    Scan styleazimuth scan and pick phase- scanazimuth scan and pick phase- scanazimuth scan and pick phase- scan
    Detective distance (UAV rcs=0.01㎡)4KM5KM8KM
    Detective distancehuman/5KM/
    cars/10KM/
    Pitch coverage0°-30°0°-30°0°-30°

    Detection accuracy

    Distance≤10m≤8m≤8m
    Detection accuracy Position≤0.8°≤0.6°≤0.5°
    Pitch≤1°≤0.6°≤0.5°
    Tracking modeTWSTWS
    Number of tracking targets≥200batches≥200batches≥200batches
    Weight≤26KG≤35KG≤60KG
    Size≤850*270*370(mm)≤1020*310*410(mm)≤1030*380*700(mm)
    Power waste≤160W≤220W≤400W

    Technical targetYFR-02D(developing)YFR-02E(developing)
    Radar wave bandXX

    Technical system

    Linear Frequency Modulated PulseLinear Frequency Modulated Pulse
    Scan styleazimuth scan and pick phase- scanazimuth scan and pick phase- scan
    Detective distance (UAV rcs=0.01㎡)10KM15KM
    Detective distance (Air vehicle rcs=2㎡)50KM75KM
    Pitch coverage0°-30°0°-30°

    Detection accuracy

    Distance≤10m≤8m
    Detection accuracy Position≤0.3°≤0.3°
    Pitch≤0.3°≤0.2°
    Tracking modeTWSTWS
    Number of tracking targets≥200batches≥200batches
    Weight≤100KG≤150KG
    Size≤1600*1100*370(mm)≤1800*2000*500(mm)
    Power waste≤800W≤1200W
